Deployment

Infrastructure

Component	Service	Region
Backend API	Fly.io	Frankfurt (fra)
Database	Supabase PostgreSQL	Frankfurt
Frontend	Vercel	Global

Fly.io Configuration

Production (fly.toml)

• App: licenseplate-checker
• Machine: shared-cpu-2x, 512MB RAM
• Min machines: 1 (always running)
• Release command: release.sh (runs migrations + seed)

Staging (fly.staging.toml)

• App: licenseplate-checker-staging
• Machine: shared-cpu-1x, 512MB RAM
• Min machines: 0 (scales to zero when inactive)

Docker

The API uses a multi-stage Dockerfile based on oven/bun:1.3:

1. Base stage: Installs dependencies and generates Prisma client
2. Release stage: Copies build artifacts, runs as non-root bun user

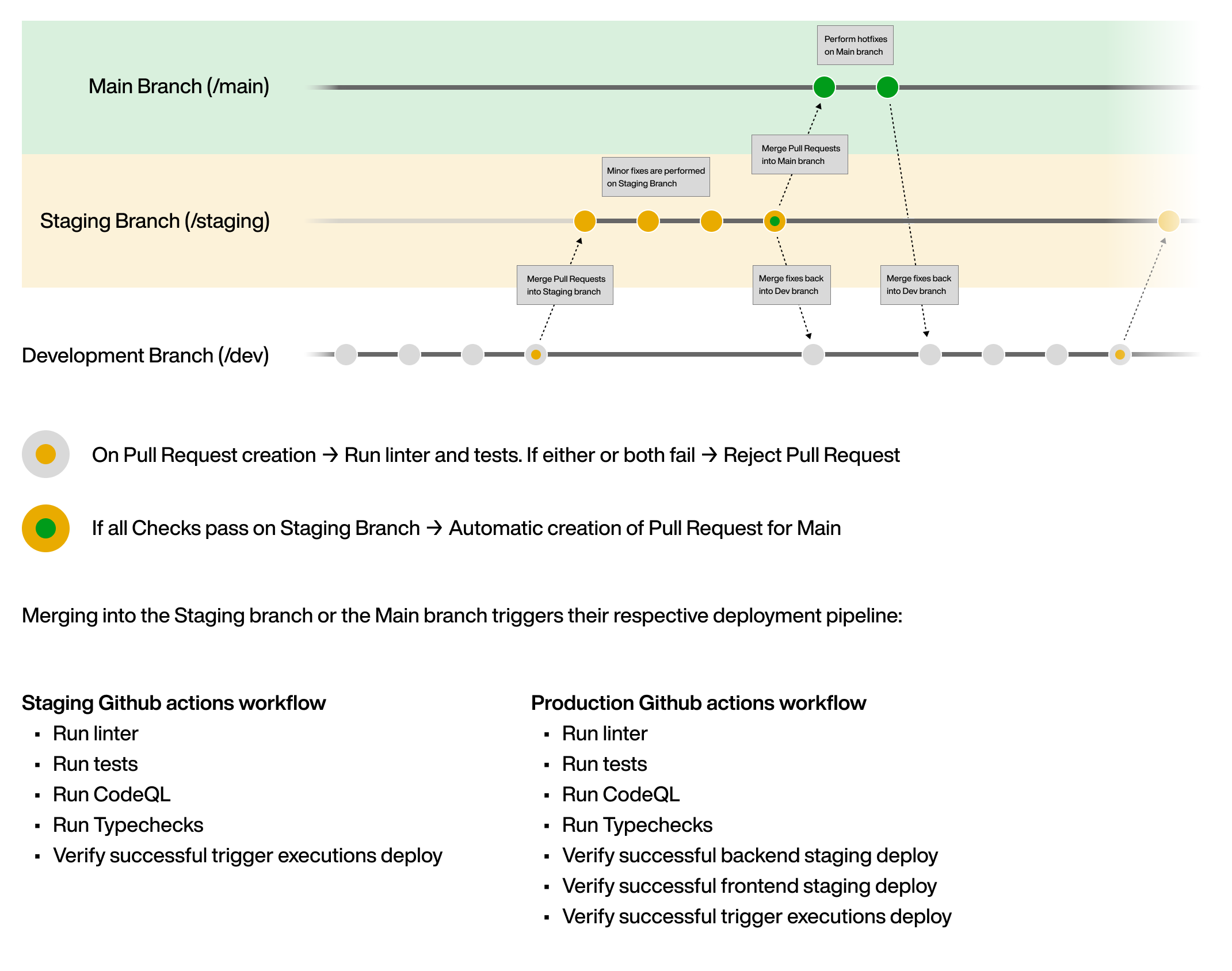

Git Workflow

The project uses a three-branch strategy: dev → staging → main. PRs to staging and main trigger automated checks (lint, tests). Merges into staging and main trigger deployments.

CI/CD Pipeline

All CI/CD is handled by GitHub Actions.

Pull Request Checks

PR → Staging (pr-staging.yml):

• Lint with Biome
• Run unit and integration tests
• Type checking
• Check if trigger execution deployment is successful

PR → Main (pr-main.yml):

• Same checks as staging PR
• Check if frontend, backend and trigger execution deploys are successful

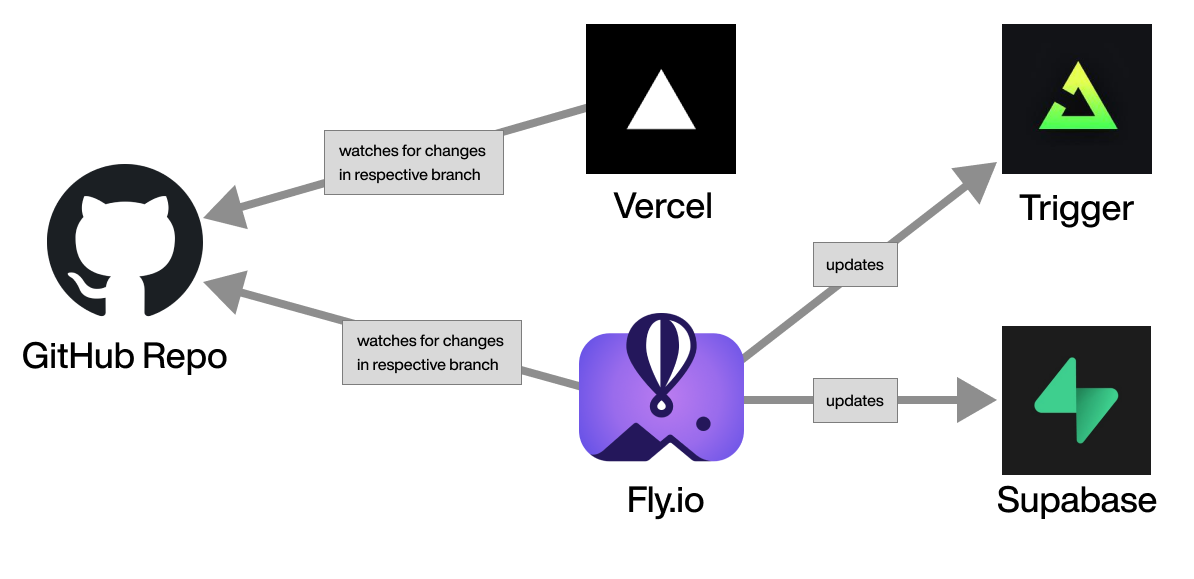

Deployment

Push to staging (deploy-staging.yml):

• Deploys to licenseplate-checker-staging on Fly.io
• Uses FLY_API_TOKEN_STAGING secret

Push to main (deploy-prod.yml):

• Deploys to licenseplate-checker (production) on Fly.io
• Uses FLY_API_TOKEN_PROD secret

Release Process

On each deployment, the release command runs before the app starts:

#!/bin/bash
set -euo pipefail
bunx prisma migrate deploy --schema prisma/schema.prisma
bun run db:seed

This ensures database migrations are applied and seed data is up to date.

Environment Variables

Backend (apps/api)

Variable	Required	Default	Description
PORT	No	8080	Server port
NODE_ENV	No	development	Environment mode
DATABASE_URL	Yes	—	PostgreSQL connection (pooled)
JWT_SECRET	Yes	—	JWT signing secret
ALLOWED_ORIGINS	Yes	—	CORS allowed origins (comma-separated)
RATE_LIMIT_WINDOW	No	900000	Rate limit window (ms)
RATE_LIMIT_MAX_REQUESTS	No	1000	Max requests per window
TRIGGER_SECRET_KEY	No	—	Trigger.dev API key
TRIGGER_WEBHOOK_SECRET	No	dev-webhook-secret	Webhook verification secret
API_BASE_URL	No	http://localhost:8080	API URL for task scheduling

Frontend (apps/web)

Variable	Required	Description
NEXT_PUBLIC_BACKEND_URL	Yes	API backend URL

Database

PostgreSQL on Supabase with two connection modes:

• Pooled (DATABASE_URL): Used at runtime via pgBouncer for connection pooling
• Direct (DIRECT_DATABASE_URL): Used by Prisma CLI for migrations only

Migrations live in apps/api/prisma/migrations/ and are applied automatically during deployment.

Monitoring

• Sentry (@sentry/bun): Captures unhandled exceptions in production. Only enabled when NODE_ENV=production.
• Fly.io Dashboard & Grafana: Machine health, logs, and metrics.
